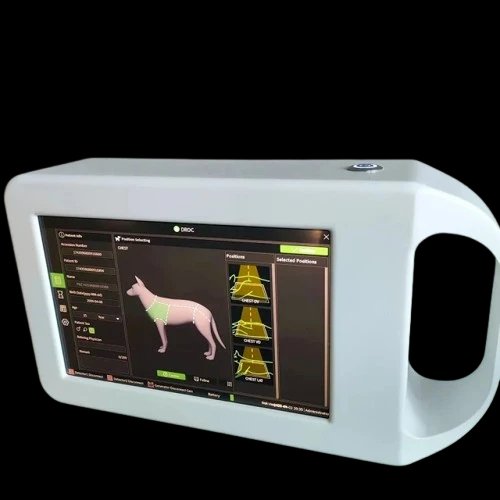

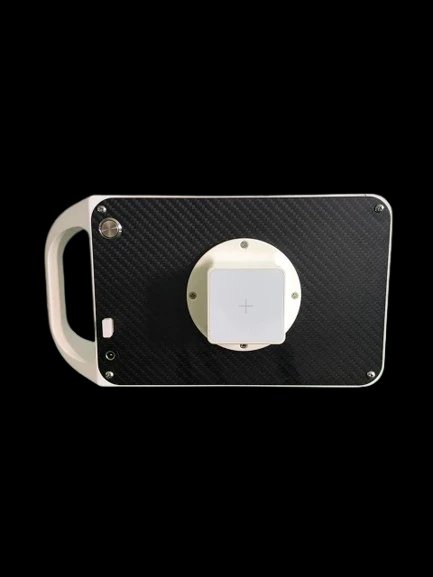

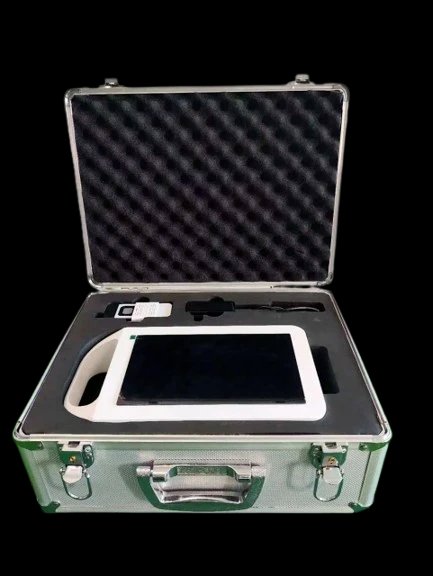

800W Handheld Veterinary X-ray Machine

Project	Item	800W Portable X Ray Specification
Charger	Input	mono-phase, AC power 220V±10%
	Frequency	50Hz/60Hz±1Hz
	Output	25.2 VDC, 1.5A
Battery		22.2V polymer lithium ion, 5000mAh
kV		40–85 kV, step: 1 kV
mA		1–16mA, step: 1 mA
X-ray release time range		0.03–0.20secs, step: 10 millisecond 0.010–4.00secs, step: 50 millisecond
Screen		8" inches, resolution: 1280×800 IPS
X-ray tube	Model
	Inherent filter	0.5mm AL
	Focus point	0.8X0.8mm
CPU		8G/16G, 256GeMMC, WIFI6
Dimension		280mm x 155mm x 65mm, length×width×height
Weight		2.8kg±5%
