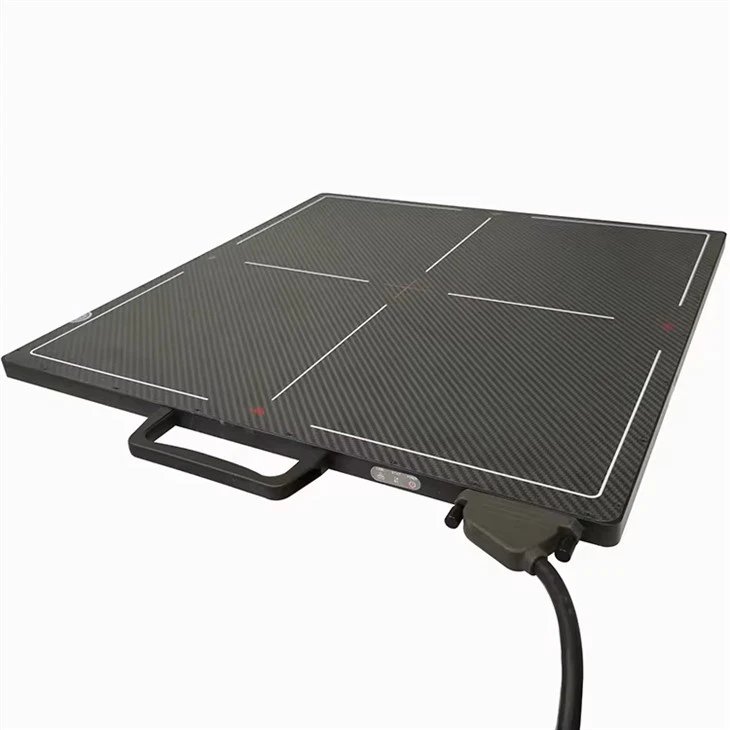

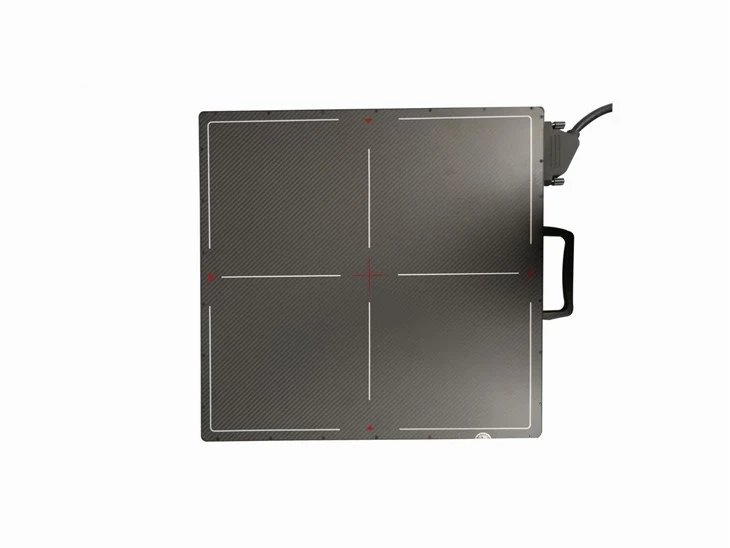

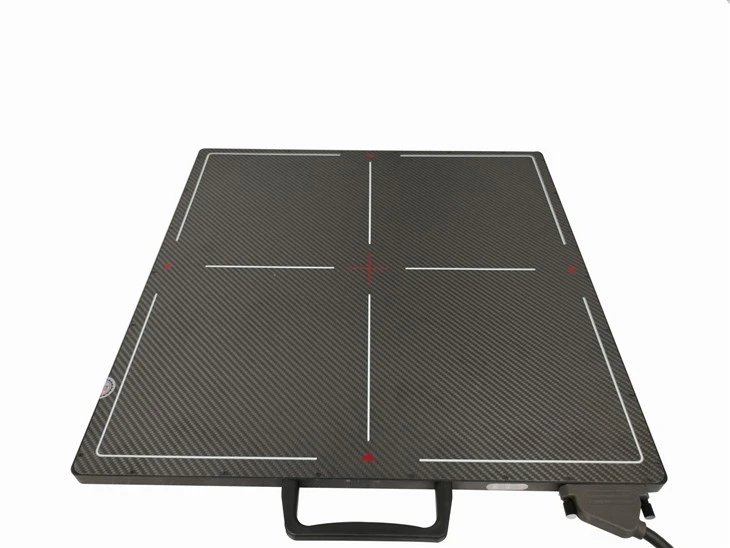

DY-4343 Digital Flat Panel Detector (FPD)

Specification Item	Value	Specification Item	Value
Detector	DY-4343	Image Output Time	1S
Sensor	a-Si	Limited Resolution	3.6 lp/mm
Scintillator Type	Perovskite / CsI	A/D Conversion	16 bit
Dimensions	460 × 460 × 15 mm	Data Interface	GigE
Weight	4.2 kg	Operating Temperature	5~35 ℃
Power Consumption	12 W	Storage Temperature	-10~50 ℃
Active Area	430 × 430 mm	Operating Humidity	20~90%RH Non-condensing
Pixel Size	139 μm	Storage Humidity	10~95%RH Non-condensing
Pixel Matrix	3072 × 3072
