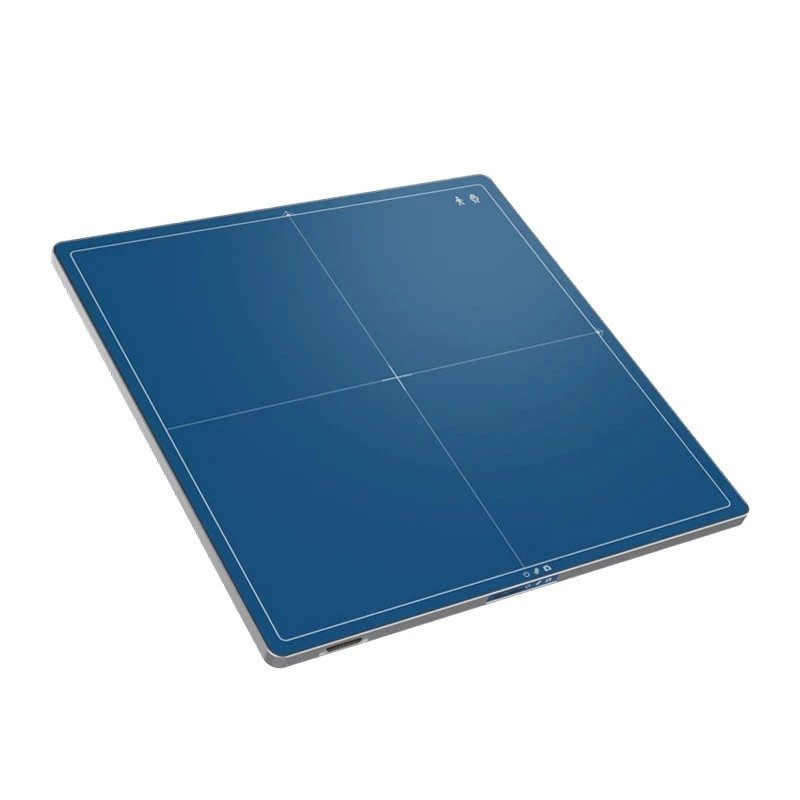

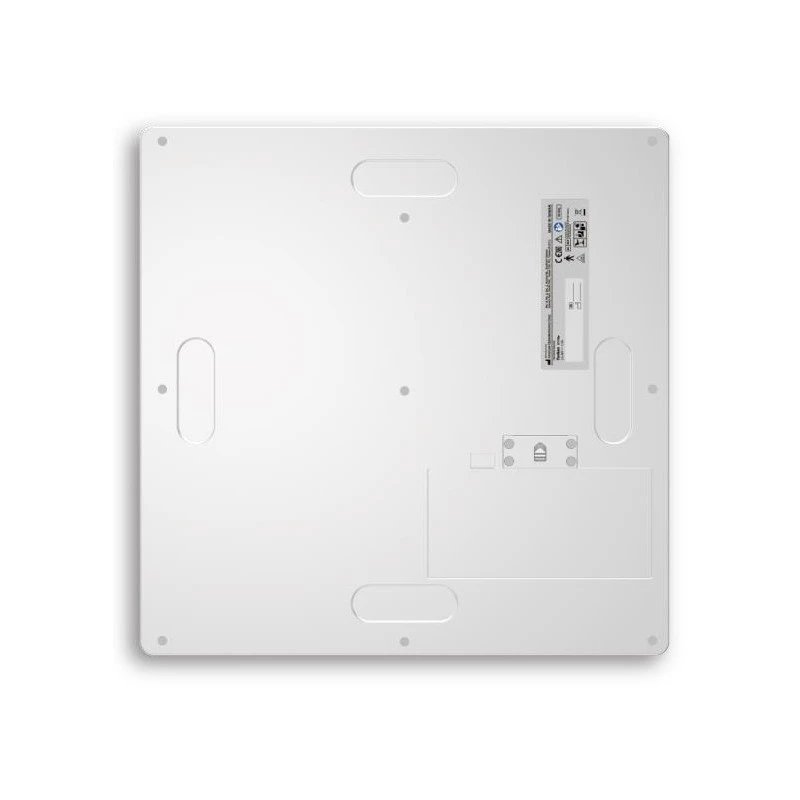

FTLV17CE 17_17 Wired Flat Panel Detector

Item	FTLV17CE (17×17)
Detector Specification
Image Sensor	a-Si TFT + photodiode
Substrate Type	Glass
Scintillator	CsI
Pixel Pitch (μm)	140
Pixel Matrix	3072×3072
Active Area (mm)	433.2×433.2
AD Conversion	16 bit
Limiting Resolution	3.57 lp/mm
Image Transfer	Wired
Dimensions (mm)	460 × 460 × 15 (ISO 4090)
Weight (kg)	3.6
Performance Characteristics
DQE (1 lp/mm)	0.48
MTF (1 lp/mm)	0.69
Maximum Linear Dose	88 μGy
Sensitivity	574 LSB/μGy
Lag	<0.5% after 60 seconds
System Functions
Image Acquisition Time (s)	3 *1
Cycle Time (s)	14.5 *1
Wire Transfer	1 Gbps ethernet
AED	Yes
Software SYNC	Yes
Durability (Uniform load)	150 kg
Durability (Local load)	100 kg
Drop height	70 cm
Energy Range	40–150 kVp
Environmental Requirements
Temperature (Operation)	10~35°C
Humidity (Operation)	10~90%
Temperature (Storage)	-10~50°C
Humidity (Storage)	10~90%
Pressure	700~1060 hPa
